Description

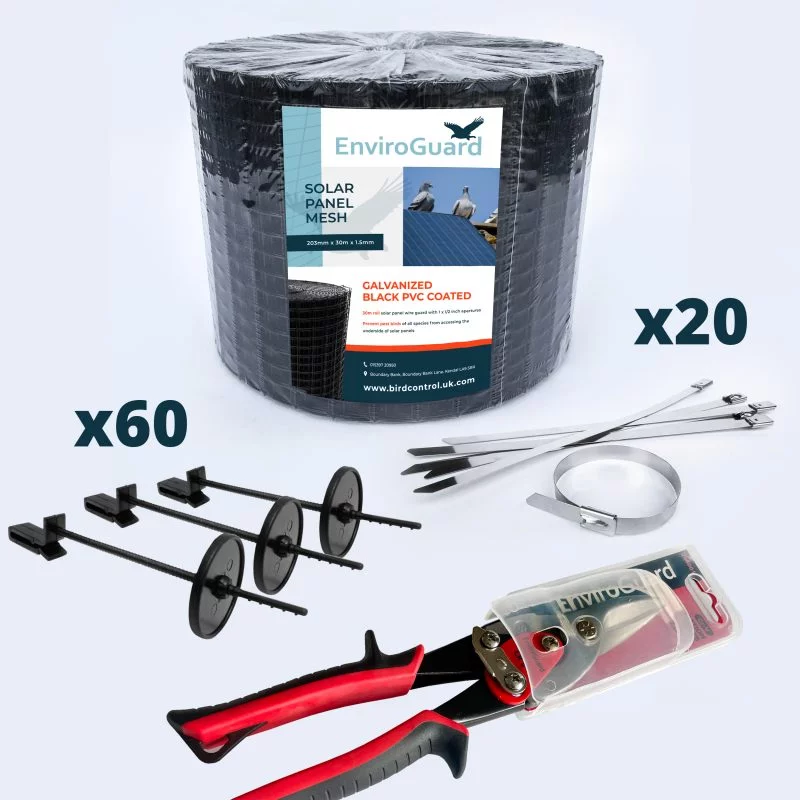

The solar panel kit contains.
- 30 Meter Hot Dipped Galvanized & Black PVC Coated Steel Solar Panel Weld Mesh Roll
- 60 Push Fit Solar Panel Mesh Clips
- 1 Standard Wire Cutter
- 20 Stainless Steel Corner Ties
Weldmesh is manufactured from hot dipped galvanised mesh then pvc coated for additional protection and to add the black colour . Mesh Size: 25mm X 12.5mm (1″ X 1/2″) Roll Width: 200mm (8″) Roll Length: 30m (100′)
(Please note this is a 30 meter roll of mesh, most other rolls sold on the internet are only 15 meters long)
Roll Width: 20 cm
Roll Length: 30 meters
Solar Panel Clips are manufactured from U.V.-stabilized polycarbonate

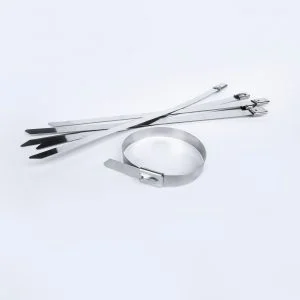

Corner ties are stainless steel to ensure the whole system will not corrode unlike other cheaper inferior products
Where to Use: Rooftop solar panel arrays
Target Bird: Feral Pigeons
Bird Pressure: All levels
Installation: Wire mesh is bound to solar panels using patent-pending securing clips.
Expertise Level: Easy
Usage:
Solar panels are being installed on commercial and residential roofs across the UK. These arrays provide perfect harbourage for pigeons, homeowners are desperate for a solution that does not involve piercing or damaging the solar panels with mechanical fixings, hence avoiding warranty issues.
This innovative system is designed specifically to keep pigeons from getting under solar arrays, protecting the roof, wiring, and equipment from damage.
A typical solar panel is approximately 1.6m tall and 1m wide, on a typical panel you should use 3 clips on each long edge and 2 clips on each short edge. See the diagram attached to this product listing for more details and an example of a typical installation.
This non-penetrating system is fast and easy to install, does not void warranties and can be removed for servicing.
Installation Instructions
-
The PVC Coated mesh is in 20 cm wide rolls and comes in a 30 meter roll.
-
Cut the roll into 1.6 M sections (or length of the longest side of a panel), it is much easier to work with shorter lengths.
-
Bend up two to three squares of the mesh to about a 45 degree angle (see illustrations below). This helps to lock the mesh snugly to the roof, this can easily be done over flat edge by hand.
STEP 1: Place clips every 18 inches. Slide the clip onto the edge of the panel support bracket. Slide as far outward as possible so the clip is all the way on the lip of the panel.

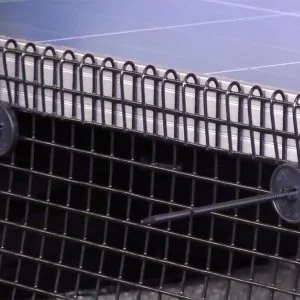

STEP 2: Set the wire mesh screen in place. Make sure the fastener rod comes through the screen at an upward angle as to keep downward pressure on the screen
STEP 3: Slide the speed washer onto the shaft of the clip and tension accordingly. Make adjustments to the screen as necessary.
STEP 4: Cut off any excess mesh screen sticking over the top edge of the solar panel array. Cut of the clip assembly rod flush with the exterior of the speed washer. Use metal shears
Installation video
If you require any further advice before ordering, please do not hesitate in contacting us and we will be happy to help….. Tel Freephone 0800 0687279
